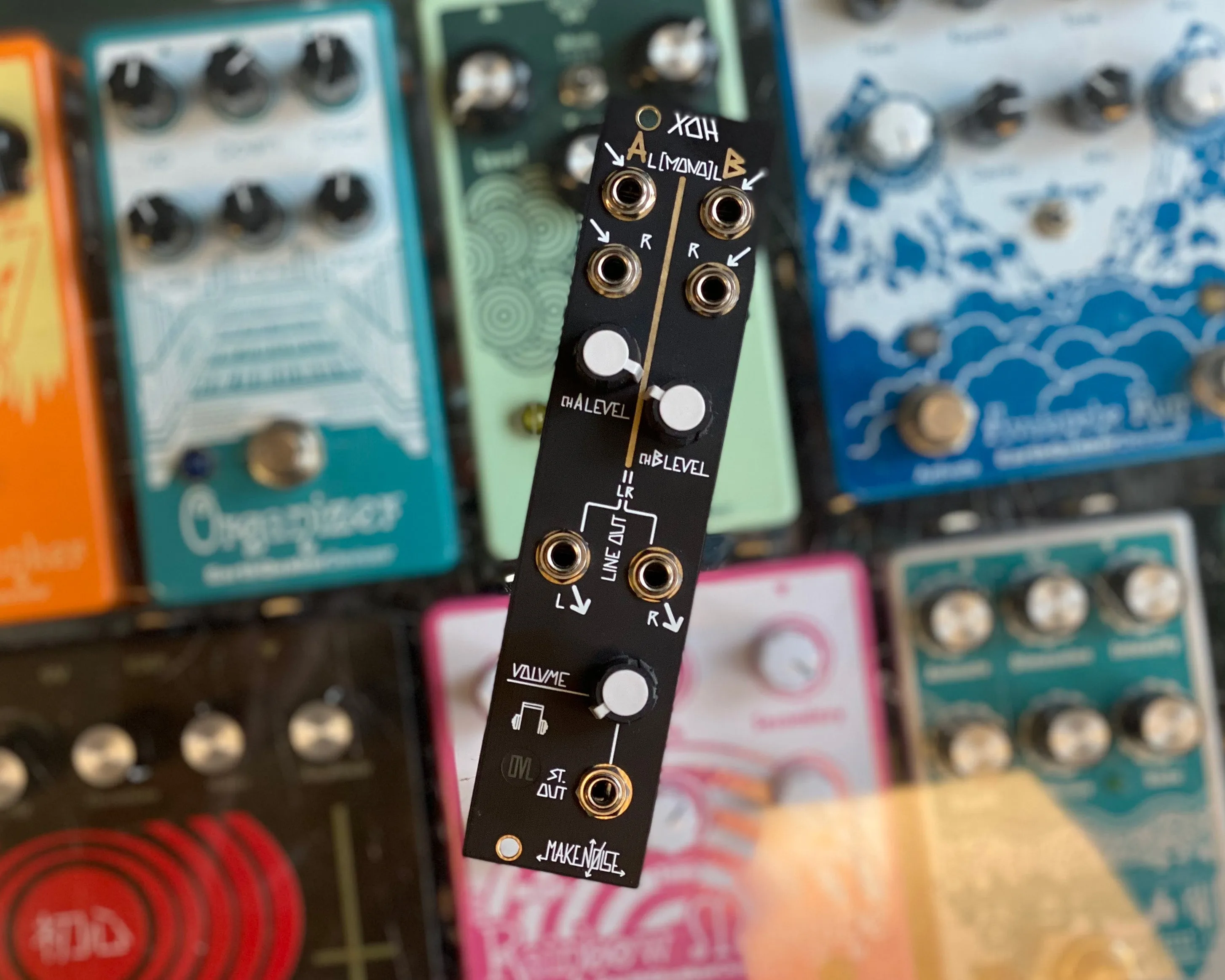

The XOH (miX Out Headphone) music synthesiser module is a 6HP stereo mixer, headphone amplifier and output interfacing module for your modular synthesiser. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

• Works with stereo modules: EV, MG, QPAS, X-PAN, MP
• Two mono/stereo input channels, ChA & ChB
• Independent level controls for ChA & Ch B -       Two stereo outputs containing A/B mix
• Independent unity gain L/R Line Level outputs
• TRS Headphone and Line Level output with level control (same line drive circuit used in the CV Bus Case)
• Adjust Modular Level signals down to Line Level with soft Limiting to protect your ears and line level gear

6hp 40mA @ 12V 40mA @-12V

Includes ribbon cable.

Product Specs

• Item Number: 31745
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Year: 2019
• Made In: United States
• MPN: 31745
• Modular Grid: Eurorack
• Dimensions: 6 HP 24 mm deep
• Power: 40 mA 12V 40 mA -12V 0 mA 5V
